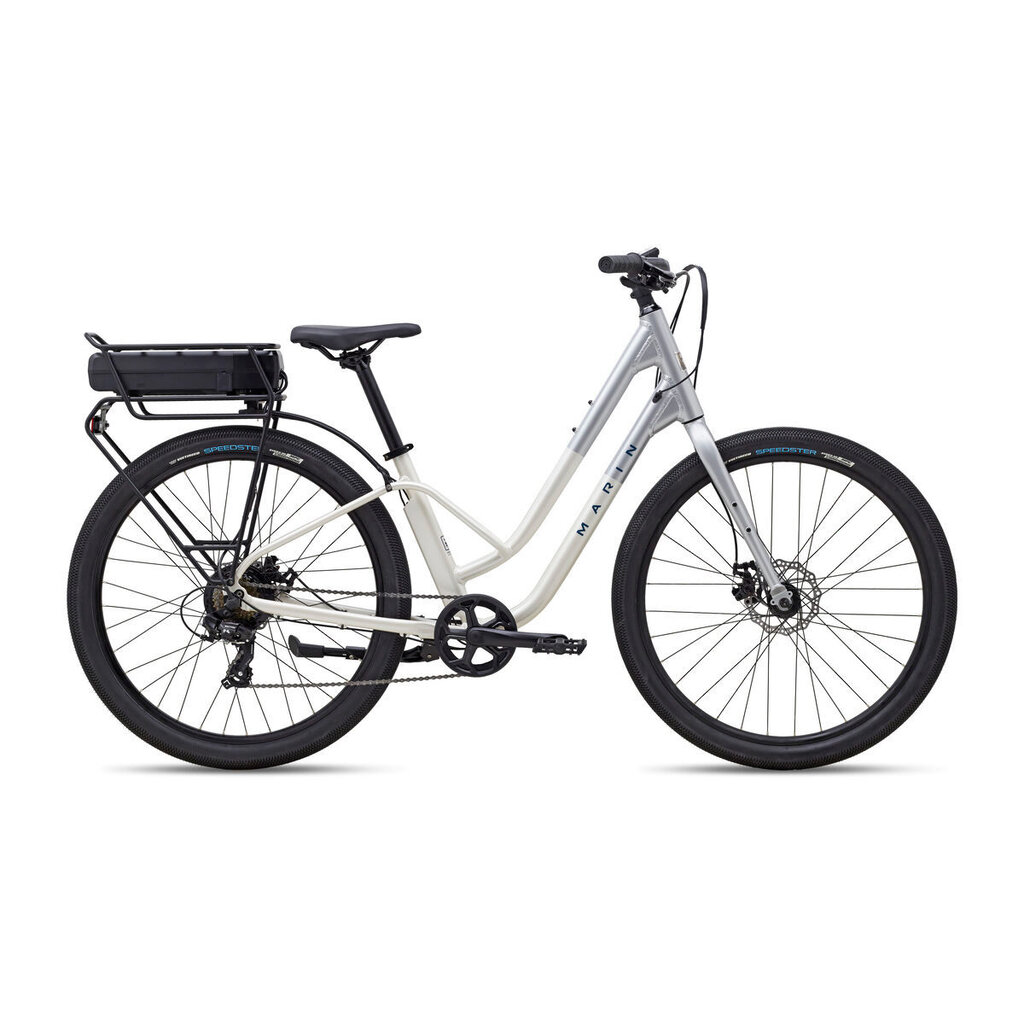

STINSON E ST

SPECIFICATIONS

• FRAME

  Series 1 Comfort, eBike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

• FORK

  CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

• RIMS

  Marin Aluminum Double Wall, Disc Specific

• HUB, REAR

  250 Watt Hub Motor, 36H

• HUB, FRONT

  Forged Aluminum Alloy, 32H

• SPOKE, NIPPLES

  14g Stainless Steel

• TIRES

  Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

• DERAILLEUR, REAR

  Shimano Tourney, 7-Speed

• DERAILLEUR, FRONT

  -

• SHIFT LEVER

  Shimano Altus 7-Speed RapidFire

• CRANKSET

  Alloy Crank, Steel 38T Chainring, Ring Guard

• BOTTOM BRACKET

  Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

• CHAIN

  KMC Z8

• CASSETTE

  Shimano 7-Speed Freewheel, 14-34T

• BRAKE, FRONT

  Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

• BRAKE, REAR

  Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

• BRAKE LEVERS

  Alloy, Long Pull

• HANDLEBAR

  Marin Alloy, 25mm Rise, 18˚ Backsweep

• STEM

  Marin Alloy

• GRIPS

  Marin County

• HEADSET

  FSA, TH No.10P

• SEATPOST

  Marin Alloy, 30.9mm

• SADDLE

  Marin Comfort

• PEDALS

  Marin Comfort Platform

• BATTERY

  309Wh, 36V, Rear Carrier Mounted

• CONTROLLER

  Handlebar Mount Switch & LCD Display

• CARRIER

  Marin Stinson E Custom Alloy w/ Pannier Mounts and Top Deck

• KICKSTAND

  Alloy Center-Mount
