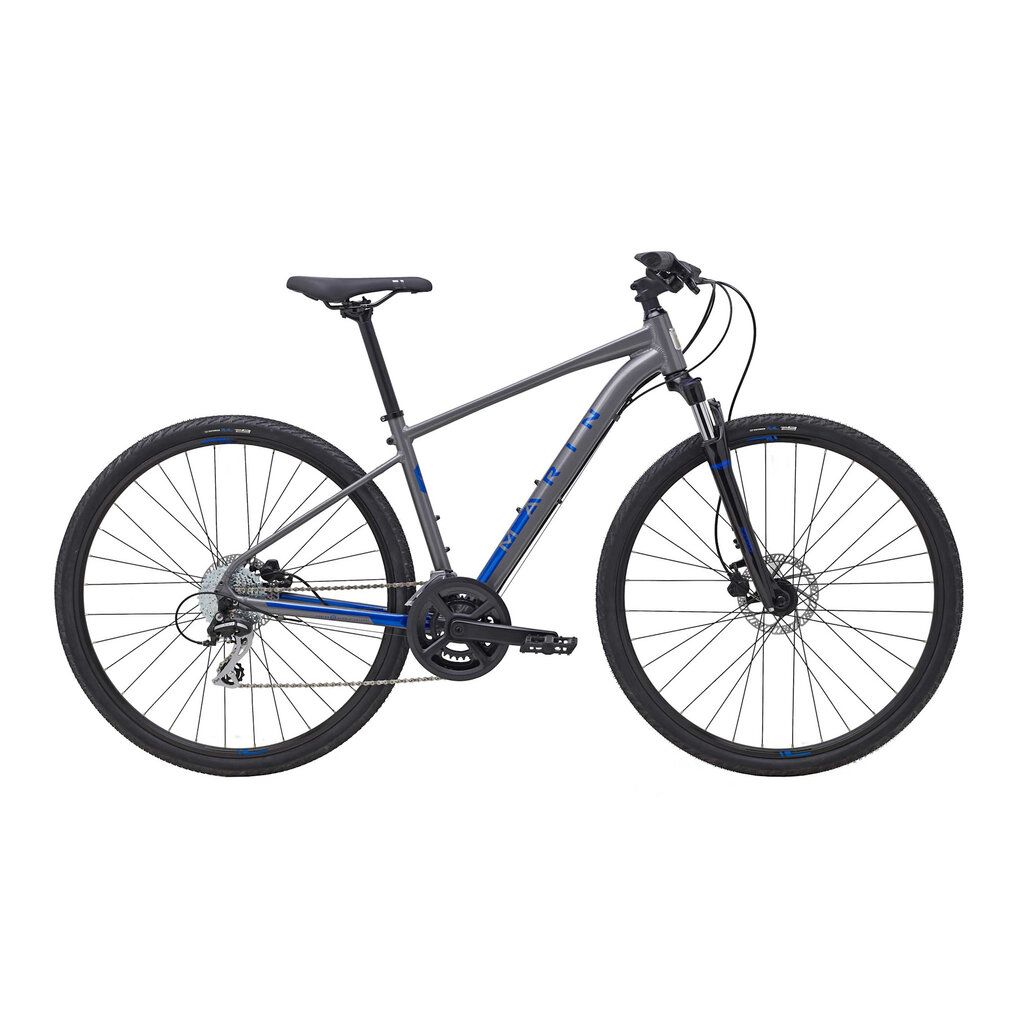

SAN RAFAEL DS2

Pick up yours in store today!

Stay active, have fun and get from A to B with Marin’s San Rafael DS2.

Our top-spec Marin San Rafael, the DS2 is lightweight, comfortable and packed with modern, reliable components. It’s made for exploring your local rail-trail, cruising to work, for the grocery-run or for keeping in shape. Efficient on the road, comfortable on the dirt tracks. Whatever, whenever.

It has a Series 2 Dual Sport aluminum frame, a shock-absorbing SR/Suntour NEX suspension fork with hydraulic lockout, reliable Shimano 2x8 gearing, grippy Kenda Kahn 700C tires and hydraulic disc brakes so you’ll always be in control.

SPECIFICATIONS

• FRAME

  Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake

• FORK

  SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment

• RIMS

  Marin Aluminum Double Wall, Disc Specific

• HUB, REAR

  Forged Aluminum Alloy, 32H

• HUB, FRONT

  Forged Aluminum Alloy, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Vee Tire, Rail, 700x40, Wire Bead

• DERAILLEUR, REAR

  Shimano Acera 8-Speed

• DERAILLEUR, FRONT

  Shimano FD-TY710

• SHIFT LEVER

  Shimano RapidFire Plus 2x8

• CRANKSET

  Forged Alloy Crank, 46/30T, Ring Guard

• BOTTOM BRACKET

  Sealed Cartridge Bearings, Square Taper

• CHAIN

  KMC Z-8.3

• CASSETTE

  SunRace 8-Speed, 11-34T

• BRAKE, FRONT

  Tektro HD-M275 Hydraulic Disc, 160mm Rotor

• BRAKE, REAR

  Tektro HD-M275 Hydraulic Disc, 160mm Rotor

• BRAKE LEVERS

  Tektro Hydraulic

• HANDLEBAR

  Marin Alloy Riser

• STEM

  Marin Alloy, 31.8mm Clamp

• GRIPS

  Marin Ergonomic Locking

• HEADSET

  FSA No.10-P

• SEATPOST

  Marin Alloy, 27.2mm

• SADDLE

  Marin Fitness Plush

• PEDALS

  Dual Sport Platform
